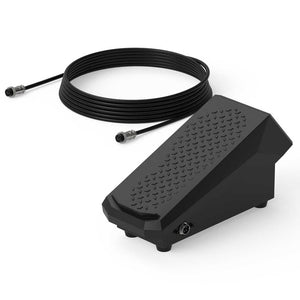

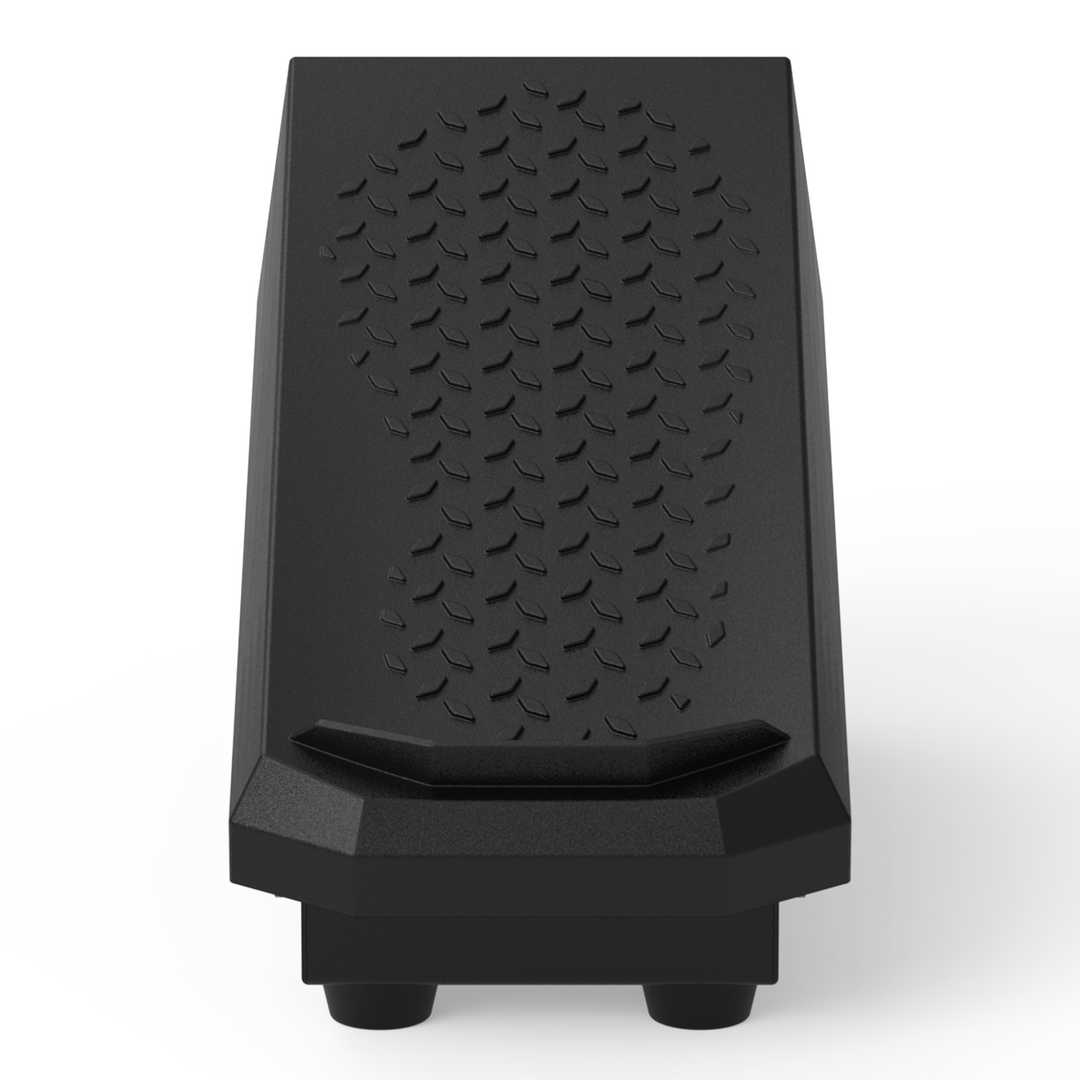

The foot pedal can work with the welder of YesWelder TIG-250P AC/DC, YWT-200DC, TIG-200P-ACDC,TIG-200P-ACDC-PRO, CT2050, DP200 and other machines with 5-pin torch controls:
Applicable to various types of TIG Welding & Cutting Machine
2+3 Pin TIG Foot Control Pedal Amp control.
Adjusts amperage from 0-250 amps
Step to activate gas contactor and increase amperage; release to turn off and decrease amperage.
Easy to install, easy to use.
Wiring Diagram
Torch control: 3,5
Amperage Control: 2,4,1
NOTE:
Please be sure your machine support foot pedal function，
Different machine has different control board, so may need to change the connect ways.
If your welder has a different connection, you may change the connector according to the manual to fit your welder.
